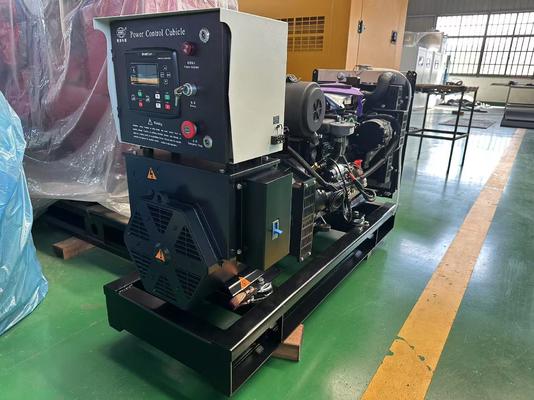

SDEC 4Z2.3-G21 Engine Open/Silent type Diesel Generator Set 20KW 60Hz Power Solutions

Name: SDEC 4Z2.3-G21 Engine Open/Silent type Diesel Generator Set 20KW 60Hz Power Solutions
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: 4Z2.3-G21
Price: 591,700.00 USD
Availability: InStock

Markenbezeichnung:	SDEC engine
Modellnummer:	4Z2.3-G21
MOQ:	1pc
Preis:	Price:Negotiable
Zahlungsbedingungen:	Western Union, t/t, d/p, l/c
Versorgungsfähigkeit:	200pcs/Monat

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

CHINA

Zertifizierung:

ISO 9001:14000,CE,EACC

Markenname::

SDEC offener Dieselgenerator 20 kW

Nennspannung::

230 V/400 V

Motormodell::

4Z2.3-G21

Bewertungsstrom::

36 A

Frequenz::

50 Hz/60 Hz

Generator::

MBC20A

Bedienfeld::

Deepsea / Harsen / Smartgen

Zertifikat::

ISO 9001: 14000, CE

ATS::

Optional

Lieferung::

7-30 Tage

Garantiezeit::

1 Jahr

Geschwindigkeit::

1500 U/min/1800 U/min

Modellnummer::

MB-40

Verpackung Informationen:

Plastik, die auf Holzträger als Verbraucheranforderungen eingewickelt sind. LCL, 20 Fuß und 40 Fuß s

Versorgungsmaterial-Fähigkeit:

200pcs/Monat

Beschreibung des Produkts

SDEC 4Z2.3-G21 diesel generator sets features:

(1) . Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Genset Parameters

Genset
Model	MB-20
Output Power	20KW /25KVA
Power Factor	COSΦ=0.8( lagging)
Maximum Output Current	36 A
Silent type Weight	450KG
Silent type Dimensions	1450530980mm
Voltage	220V
Frequency	60Hz
Diesel Engine
Manufacturer	SDEC Diesel Engine
Model	4Z2.3-G21
Rotate Speed	1800RPM
Power	21/23KW
Fuel Consumption	≤195g/kw.h
Cylinder/Stroke	85*100 mm
Compression Ratio	18:1
Displacement	2.3L
Configuration	4-cylinder in-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Changsha Mingbang Intelligent Technology Co.Ltd
Model	MBC20A
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 60Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Rated power	Engine	Alternator	Control panel
24kw~1500kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
36kw~18+00kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

SDEC 4Z2.3-G21 Engine Open/Silent type Diesel Generator Set 20KW 60Hz Power Solutions 0

Our factory

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.

SDEC 4Z2.3-G21 Engine Open/Silent type Diesel Generator Set 20KW 60Hz Power Solutions 3

SDEC 4Z2.3-G21 Engine Open/Silent type Diesel Generator Set 20KW 60Hz Power Solutions 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
