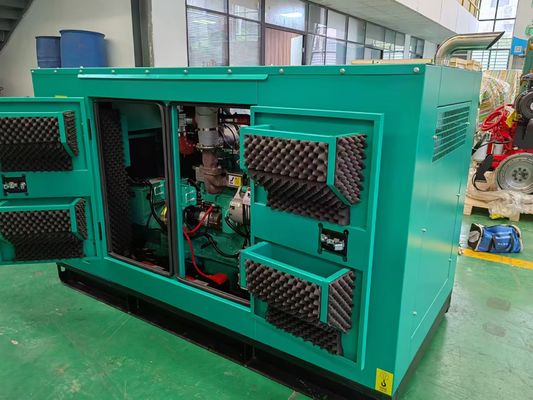

1500rpm/1800rpm Weichai WP4D66E300NG Open/Silent Diesel Generator Set 50KW/62.5KVA Power Solution with Optional ATS

1500rpm/1800rpm Weichai WP4D66E300NG Open/Silent Diesel Generator Set 50KW/62.5KVA Power Solution with Optional ATS

Markenbezeichnung:	Weichai engine
Modellnummer:	MB-50
MOQ:	1pc
Preis:	Price:Negotiable
Zahlungsbedingungen:	Western Union, t/t, d/p, l/c
Versorgungsfähigkeit:	200pcs/Monat

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

CHINA

Zertifizierung:

ISO 9001:14000,CE,EACC

Markenname::

Weichhai Gasgenerator-SET

Nennspannung::

230 V/400 V

Motormodell::

WP4D66E300NG

Bewertungsstrom::

90a

Frequenz::

50 Hz/60 Hz

Generator::

Leroy-Somer/ Wuxi Stanford

Bedienfeld::

Deepsea / Harsen / Smartgen

Zertifikat::

ISO 9001: 14000, CE

ATS::

Optional

Lieferung::

7-30 Tage

Garantiezeit::

1 Jahr

Gensetdimension::

5000 × 2150 × 2500 mm

Gensetgewicht::

7000 kg

Geschwindigkeit::

1500 U/min/1800 U/min

Verpackung Informationen:

Plastik, die auf Holzträger als Verbraucheranforderungen eingewickelt sind. LCL, 20 Fuß und 40 Fuß s

Versorgungsmaterial-Fähigkeit:

200pcs/Monat

Hervorheben:

1500rpm Diesel Generator Set

1800rpm Diesel Generator Set

50KW/62.5KVA Diesel Generator Set

Beschreibung des Produkts

Weichai Engine WP4D66E300NG GAS generator sets features:

(1) . Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Genset Parameters

Genset
Model	MB-50
Output Power	50KW/62.5KVA
Power Factor	COSΦ=0.8(lagging)
Maximum Output Current	90A
Weight	850KG
Silent Genset Dimensions	1700×750×1110mm
Voltage	400/230
Frequency	50Hz
Gas Engine
Manufacturer	Weichai Gas engine
Model	WP4D66E300NG
Rotate Speed	1500RPM
Power	66 KW
Fuel Consumption	≤198 g/kw.h
Cylinder/Stroke	105*130 mm
Configuration	4 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling Mode	Closed circuit water cooling
Speed Control System	Electronic Govenor
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Wuxi Stanford Intelligent Technology Co.Ltd
Model	STUC-50
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Rated power	Engine	Alternator	Control panel
24kw~1500kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
36kw~18+00kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

1500rpm/1800rpm Weichai WP4D66E300NG Open/Silent Diesel Generator Set 50KW/62.5KVA Power Solution with Optional ATS 0

Our factory

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.

1500rpm/1800rpm Weichai WP4D66E300NG Open/Silent Diesel Generator Set 50KW/62.5KVA Power Solution with Optional ATS 3

New Powered By Yangdong Engine Prime Power 800kw Diesel Generator Set

1500rpm/1800rpm Weichai WP4D66E300NG Open/Silent Diesel Generator Set 50KW/62.5KVA Power Solution with Optional ATS 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
